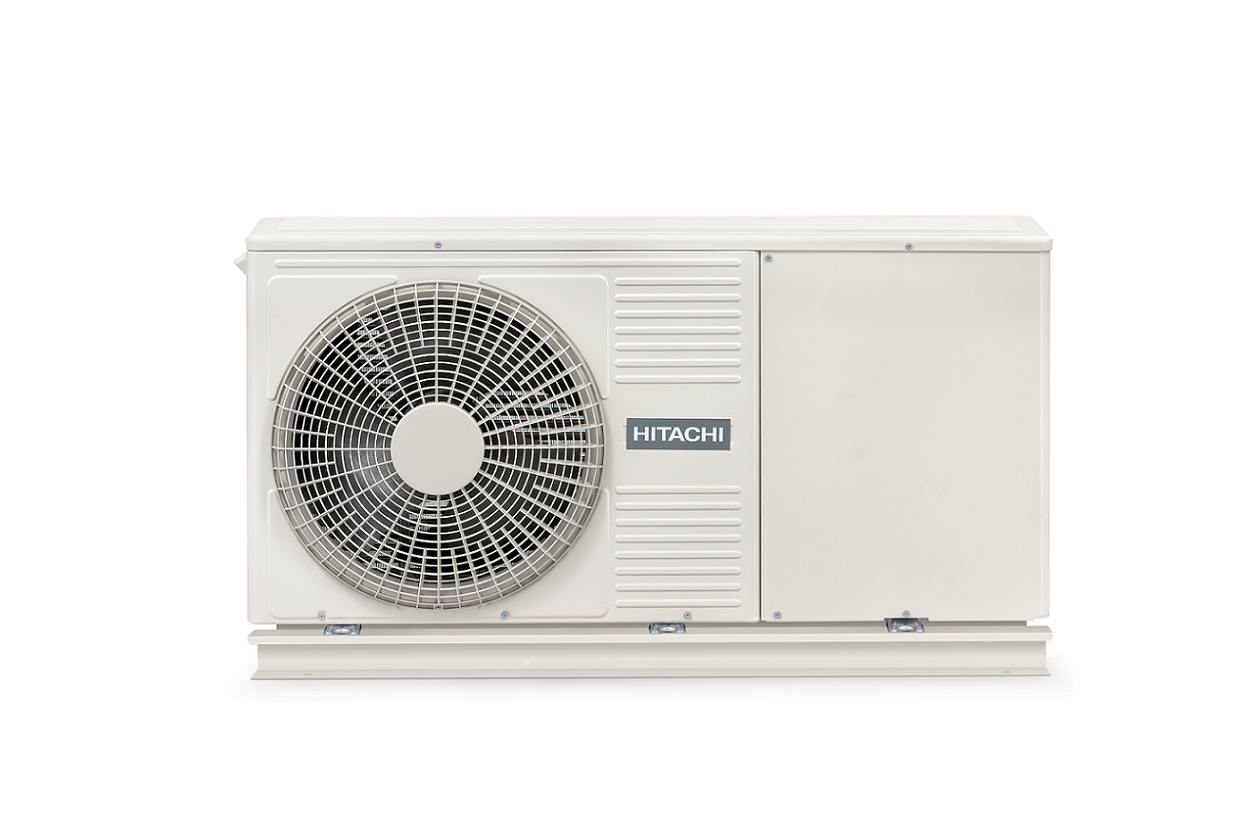

– YUTAKI M

Keeping you warm in the coldest months

– Made for any weather

The Yutaki M's wide operating temperature range copes even in extreme weather down to -25c . The system delivers heat via underfloor heating and low and high temperature radiators, and produces hot water, making it an an ideal boiler replacement.

– Comfort and efficiency

– Quiet and compact

New models footprint reduced by 20% and low sound levels so you can enjoy the perfect climate in calm serenity

1/3

– Outdoor Unit

Outdoor Unit

RASM-2VRE	RASM-3VRE	RASM-4VNE	RASM-5VNE	RASM-6VNE	RASM-4NE	RASM-5NE	RASM-6NE

Nominal capacity (max)	Heating	kW
Nominal capacity (max)	Cooling	kW

Power consumption - nom	Heating	kW
Power consumption - nom	Cooling	kW

COP at 7°C ext, 35°C water

(Nominal)

EER 35 ° C / 7-12 ° C water

(Nominal)

Energy class rating 35°C

Seasonal efficiency 35°C

SCOP / ŋs

Energy class rating 55°C

Seasonal efficiency 55°C

SCOP / ŋs

Power feed

Noise level

dB(A)

Airflow

m3/h

Heating operating range	Outdoor temperature	ºC (DB)
Heating operating range	Water outlet temperature	ºC

Operating range Cooling	Outdoor temperature	ºC (DB)
Operating range Cooling	Water outlet temperature	ºC

Operating range Tank (DHW)	Outdoor temperature	ºC (DB)
Operating range Tank (DHW)	Water outlet temperature	ºC

Refrigerant

Refrigerant charge

Compressor

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

4.30 (6.50)
4.00 (5.00)
0.82
1.00
5.25
4.00
A+++
4.60 / 181 %
A++
3.40 / 133 %
1 ~230 V 50Hz
61
2526
-20 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-20 ~ 35
30 ~ 75
R32
1.2
Scroll DC Inverter
704
1248
300
76

8.00 (11.00)
6.50 (7.00)
1.74
1.94
4.60
3.35
A+++
4.50 / 177 %
A++
3.20 / 125 %
1 ~230 V 50Hz
69
2982
-20 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-20 ~ 35
30 ~ 75
R32
1.3
Rotary DC Inverter
704
1248
300
78

11.00 (15.20)
7.20 (11.80)
2.20
2.03
5
3.54
A+++
4.75 / 187 %
A++
3.48 / 136 %
1 ~230 V 50Hz
64
4800
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
2.8
Scroll DC Inverter
1380
1252
370
131

14.00 (16.70)
9.50 (12.60)
2.97
2.68
4.71
3.54
A+++
4.45 / 175 %
A++
3.40 / 133 %
1 ~230 V 50Hz
65
5400
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
3.1
Scroll DC Inverter
1380
1252
370
133

16.00 (17.80)
10.50 (13.70)
3.50
3.17
4.57
3.31
A++
3.90 / 153 %
A++
3.30 / 125%
1 ~230 V 50Hz
69
6000
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
3.1
Scroll DC Inverter
1380
1252
370
133

11.00 (15.20)
7.20 (11.80)
2.20
2.03
5
3.54
A+++
4.75 / 187 %
A++
3.48 / 136 %
3N ~400V 50 Hz
64
4800
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
2.8
Scroll DC Inverter
1380
1252
370
130

14.00 (16.70)
9.50 (12.60)
2.97
2.68
4.71
3.54
A+++
4.45 / 175 %
A++
3.40 / 133 %
3N ~400V 50 Hz
65
5400
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
3.1
Scroll DC Inverter
1380
1252
370
132

16.00 (17.80)
10.50 (13.70)
3.50
3.17
4.57
3.31
A++
3.90 / 153 %
A++
3.30 / 125%
3N ~400V 50 Hz
69
6000
-25 ~25
20 ~ 60
10 ~ 46
5 ~ 22
-25 ~ 35
30 ~ 75
R410a
3.1
Scroll DC Inverter
1380
1252
370
132

Open table

Download PDF

– documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

YUTAKI HEATING RANGE BROCHURE

YUTAKI HEATING RANGE TECHNICAL CATALOGUE - R410a

YUTAKI SET UP GUIDE - COMMISSIONING

IOM YUTAKI MONOBLOC - 4 - 6 HP R410a

YUTAKI HEATING RANGE TECHNICAL CATALOGUE - All R32

IOM YUTAKI MONOBLOC - 2 - 3 HP R32

All downloads

–
